TAK-4®
Family of Independent Suspension Systems
There are no compromises. And absolutely no comparisons.
Scale a rocky slope. Outmaneuver the enemy. Haul equipment with capacity to spare. Nothing should stand in the way of the mission. The patented Oshkosh® TAK-4® family of independent suspensions gives any vehicle – from light tactical trucks to heavy equipment transporters – the protection, mobility and payload capacity to effectively complete demanding missions.
Our experts leverage decades of ground operations experience and unmatched vehicle knowledge to design and deliver superior suspension systems. We understand what it takes to protect crews, achieve higher speeds, haul the heaviest loads and overcome harsh terrain. Over and over, TAK-4® suspensions deliver scalable solutions to improve ride quality, protection and mobility.

TAK-4® | Independent Suspension System
S-CAM or wedge drum brakes
Standard coil spring option
Hydro-pneumatic spring option
High-pressure gas (HPG) spring option
Up to 16 in. (40.6 cm) independent wheel travel
Performance Over and Above All Obstacles Ahead
Featured on the M-ATV, LVSR, PLS A1, P-19R and MTVR platforms, the patented TAK-4® independent suspension system steadily thunders over whatever comes its way. Equipped with this suspension, the Oshkosh® MRAP All-Terrain Vehicle (M-ATV) quickly proved to be lighter with greater maneuverability and ride quality, while maintaining MRAP-level protection against threats. First used on the U.S. Marine Corps Medium Tactical Vehicle Replacement (MTVR), the Oshkosh® TAK-4® family of independent suspension systems sets Oshkosh apart as the leader in off-road military mobility and has been applied to more than 25,000 tactical wheeled vehicles.
Featured on the M-ATV, LVSR, PLS A1, P-19R and MTVR platforms, the patented TAK-4® independent suspension system steadily thunders over whatever comes its way. Equipped with this suspension, the Oshkosh® MRAP All-Terrain Vehicle (M-ATV) quickly proved to be lighter with greater maneuverability and ride quality, while maintaining MRAP-level protection against threats. First used on the U.S. Marine Corps Medium Tactical Vehicle Replacement (MTVR), the Oshkosh® TAK-4® family of independent suspension systems sets Oshkosh apart as the leader in off-road military mobility and has been applied to more than 25,000 tactical wheeled vehicles.

TAK-4i™ | Intelligent Independent Suspension System
Disc brakes & HPG springs
Up to 20 in. (50.8 cm) independent vertical wheel travel
Self-leveling SAES
Raise & lower using interior controls
Next-generation Technology that Sets a New Standard for Off-road Mobility

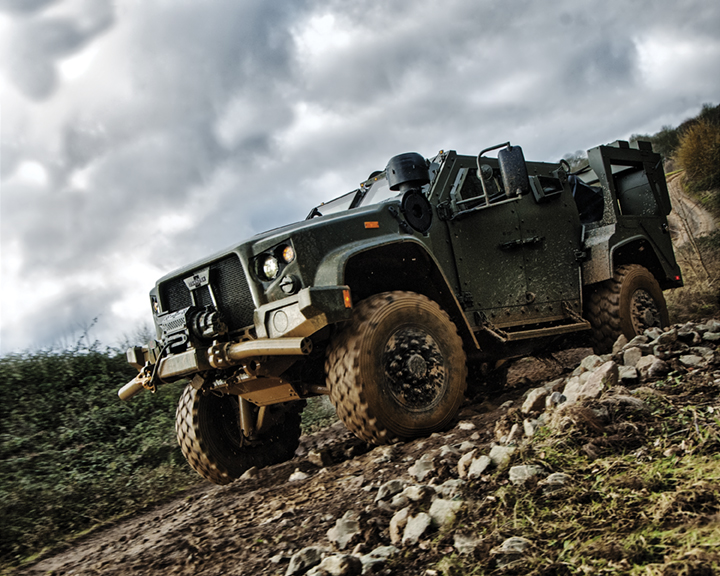

Take harsh terrain head on with Oshkosh’s patented TAK-4i™ intelligent independent suspension. This suspension has demonstrated its capabilities on the Oshkosh® JLTV, delivering next-generation mobility that outmaneuvers, outlasts and out performs any other suspension. It delivers superior ride quality to achieve higher speeds across rougher terrain. Designed with state-of-the-art technologies and a full 20 inches (50.8 cm) of usable wheel travel and a self-leveling Suspension Aided Egress System (SAES) on longitudinal or lateral slopes when parked, TAK-4i™ technology is a scalable solution for unprecedented mobility and safety for any tactical wheeled vehicle.
Take harsh terrain head on with Oshkosh’s patented TAK-4i™ intelligent independent suspension. This suspension has demonstrated its capabilities on the Oshkosh® JLTV, delivering next-generation mobility that outmaneuvers, outlasts and out performs any other suspension. It delivers superior ride quality to achieve higher speeds across rougher terrain. Designed with state-of-the-art technologies and a full 20 inches (50.8 cm) of usable wheel travel and a self-leveling Suspension Aided Egress System (SAES) on longitudinal or lateral slopes when parked, TAK-4i™ technology is a scalable solution for unprecedented mobility and safety for any tactical wheeled vehicle.

TAK-4i™ | Light Independent Suspension System
Integrated onto HMMWV
High-performance disc brakes
High-performance coil springs
14 in. (35.5 cm) of independent wheel travel

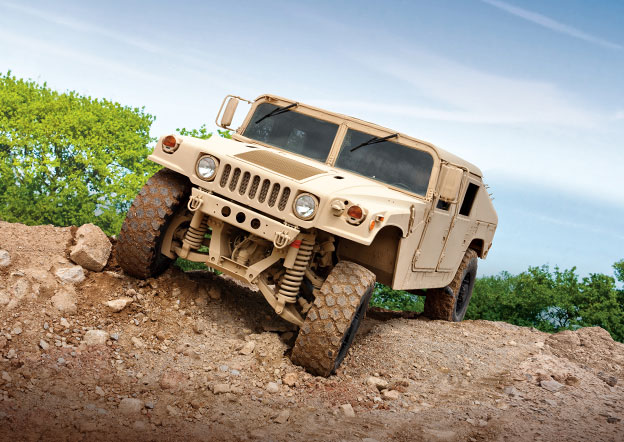

The Proven, Reliable Suspension Solution for HMMWV
TAK-4i™ independent suspension takes the most rugged, reliable suspension system and applies it to light vehicle platforms. Designed to enhance the mission capabilities of the HMMWV, the patented TAK-4i™ innovations provide an integrated driveline solution that allows light vehicles to maintain full payload capacity, while improving suspension travel and overall ride quality. The result: A higher level of mobility, versatility and survivability for a variety of light vehicle missions.
TAK-4i™ independent suspension takes the most rugged, reliable suspension system and applies it to light vehicle platforms. Designed to enhance the mission capabilities of the HMMWV, the patented TAK-4i™ innovations provide an integrated driveline solution that allows light vehicles to maintain full payload capacity, while improving suspension travel and overall ride quality. The result: A higher level of mobility, versatility and survivability for a variety of light vehicle missions.
